Installing the Thomson TG123g Wireless Adapter - Windows XP

Here we'll show you how to install the Thomson TG123g Wireless Adapter on Windows XP.

  1. Introduction
  2. Before you start
  3. Installing and connecting the TG123g
  4. Connecting to your Wireless Network

Introduction

Your hardware pack contains:

Box contents

Before you start

Only plug your adapter in when the installation software tells you to.

Installing and connecting the TG123g

1. Put the Thomson TG123g Setup CD into your CD drive.

CD in drive

2. After a few seconds you'll be asked to choose your language. Do this and click OK.

Choose Language

3. You'll see the setup Welcome Screen, click Next.

Welcome Screen

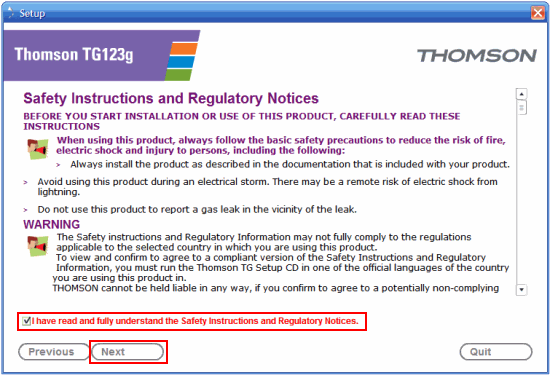

4. You'll be asked to check that everything you need is in the box, click Next. Now you'll see the Safety Instructions and Regulatory Notices. When you've read these and you're happy with them, tick the box labelled I have read and fully understand the Safety Instructions and Regulatory Notices and press Next.

Safety Instructions and Terms

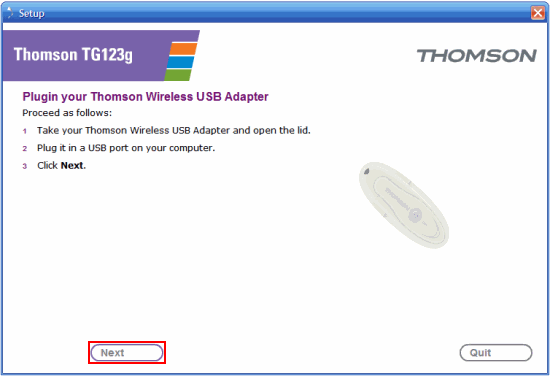

5. Now it's time to plug in the adapter. Open the lid and plug the adapter into a USB port on your computer and click Next.

Plug Adapter in

6. The software for your Thomson TG123g Wireless Adapter will now be installed.

Install Software

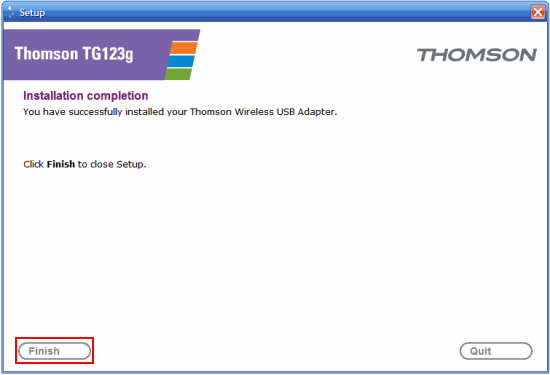

7. When it's finished you'll see this screen, press Finish to close the setup wizard

Done

Connecting to your wireless network

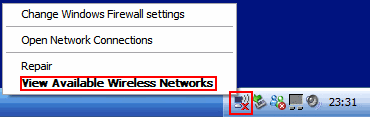

1. Now the adapter is installed, you'll see a wireless network icon on your system tray (you can find this in the bottom right-hand corner of your screen). Right click on it and choose View Available Wireless Networks.

Wireless Options

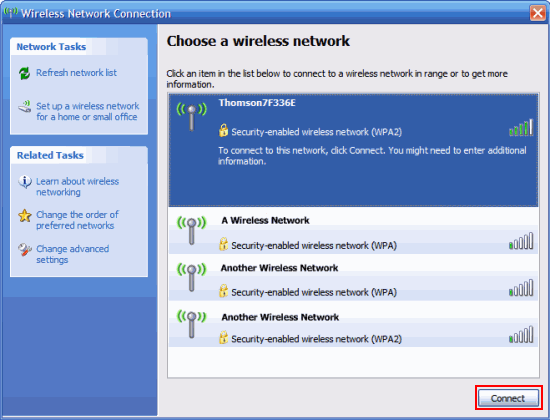

2. Your computer will scan and show you the networks you can connect to, if you don't see anything, click Refresh network list.

Click on your network so it's highlighted and press Connect. On the Thomson 585v7 router, the name of the wireless network is the SSID which you'll find printed on the bottom of the router.

Available Networks

3. Assuming you're connecting to your Thomson 585v7 router for the first time, enter the WPA PSK key (printed on the bottom of the router) in each of the Network key boxes and press OK.

Enter Wireless Key

4. Your computer will now connect to the network.

Connecting

If you've not already done so the next step is to connect your router to the Internet.

If you're using the Thomson 585v7 our Installation guide will show you how.
