Installing the Voyager 2091 - Ethernet connection
With the BT Voyager 2091, you can connect simultaneously via Ethernet and wireless.
Please Note: Presently, there are no compatible USB drivers for the Voyager series, which means that you can only connect either by Ethernet or wireless.
To connect your computer to the Ethernet socket of the Voyager 2091 Router:
- Attach one end of the yellow Ethernet cable to the Ethernet socket at the back of the Router.
- Connect the other end of the cable to the Ethernet/Network Interface Card (NIC) socket of the computer.
If the computer cannot find the router, leave for a few minutes and try again. If this does not solve the problem, restart the computer with the router plugged in and try again.
To set or update your broadband connection settings, open your web browser and type http://192.168.1.1 into the URL address box. Then press the Enter or Return key.
If the computer cannot find the router, leave for a few minutes and try again. Should the dial-up connection appear click on Tools, Internet Options and select the Connections tab, choose Never dial a connection and apply your settings. If this does not solve the problem, restart the computer with the router plugged in and try again.

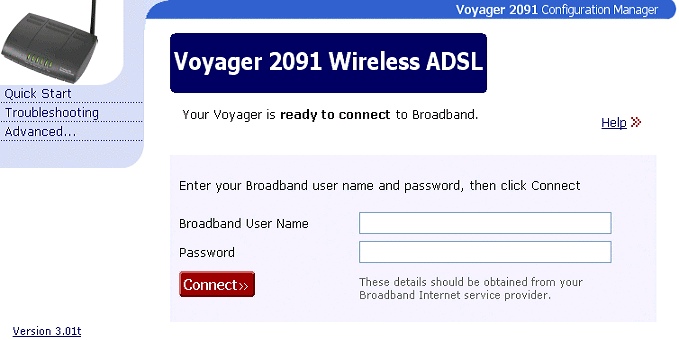

The Configuration Manager opens at the Quick Start page.
Make sure that your broadband service is ready by checking that the DSL light is ON and steady.
Enter your Broadband User Name and Password into the Broadband User Name and Password fields on the Quick Start screen.
Click Connect. The Voyager 2091 will now connect you to our Internet service and the Quick Start screen will change to show the connection status. If at any time you wish to disconnect from your Internet service, simply click the Disconnect button.
If you cannot browse the Internet, click Disconnect, then follow steps above again.
With your Voyager 2091 Router, your broadband connection is always-on and you do not have to dial-up to initiate the connection. Simply start your Internet browser and surf the Internet. That's it!
